Product Introduction

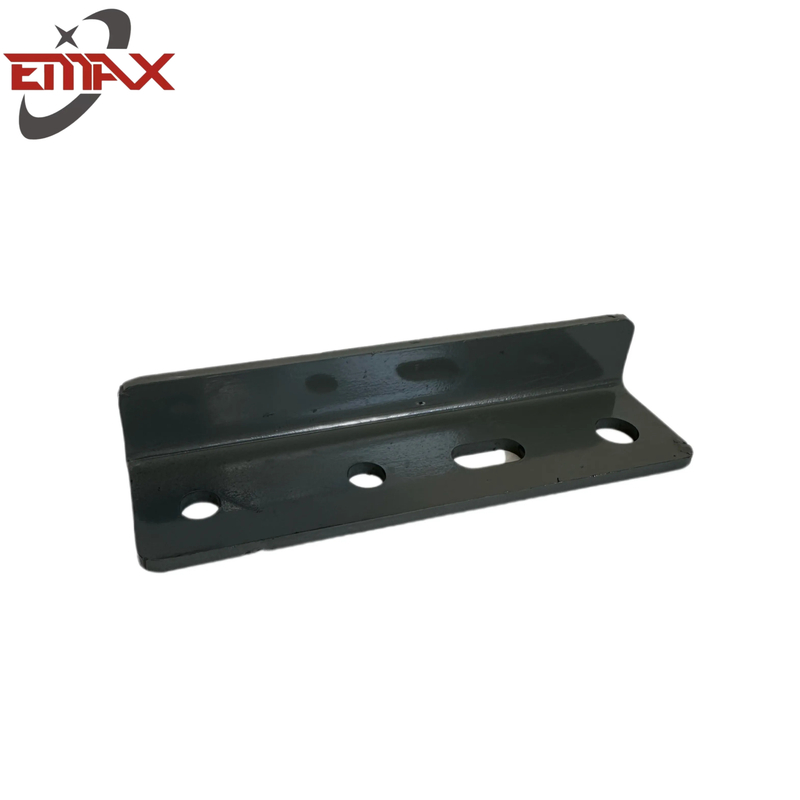

Metal Corner L Brackets: Production & Application in Furniture

Metal Corner L Brackets are silent workhorses in the furniture production process. The right-angled brackets, typically made from steel or aluminum, provide structural reinforcement while maintaining clean aesthetic lines in both residential and commercial furniture.

Manufacturing Process
Production begins with cold-rolled steel coils (1.2-3mm thickness) or sheets of aluminum being fed into CNC punch presses. The high-precision tooling punches out L-shaped profiles as well as stamping ribbed patterns that provide additional load-bearing capacity. High-grade variants are also stamped to create triangular gusset reinforcements in the joint.

The brackets move through deburring machines, which remove sharp edges via abrasive brushes. Then they go through surface treatment - zinc electroplating for corrosion-resistant finishes or powder coating when color-matched finishes are preferred. Quality inspections are conducted for dimensional accuracy (typical tolerance is ±0.5mm) and coating thickness (minimum 8μm zinc coating). Automatic packing machines sort brackets into various sizes (typical sizes: 25x25mm to 100x100mm) in anti-tarnish paper protection.

Functional Applications

1. Structural Reinforcement: Primary use is strengthening 90° joints in bookcases, cabinet frames, and office partitions made of wood. Brackets distribute weight evenly, resisting joint separation under load.

2. Invisible Support: When attached underneath surfaces, they provide hidden support for glass tabletops and cantilevered shelves without marring appearance.

3. Modular Assembly: Enable flat-pack furniture systems with standardized connection points in knockdown (KD) beds and shelving systems.

4. Material Compatibility: Suitable for use with wood, MDF, acrylic, and composite materials. Self-tapping screws (provided) feature twin threads to engage porous materials without pre-drilling.

Technical Benefits
Modern L-brackets withstand vertical loads of up to 200kg when properly installed. Powder-coated versions comply with 500-hour salt spray tests (ASTM B117), making them perfect for outdoor furniture. The ribbed section increases torsional stiffness by 40% compared to flat brackets.

From mass-produced commodity office furniture to one-off woodworking projects, these unobtrusive components are a secret to creating durable, stable structures. Their combination of commercial-grade performance and unobtrusive design ensures ongoing relevance in the face of evolving furniture markets. Manufacturers increasingly utilize recycled steel variations, adhering to sustainable production methods without compromising on the 10+ years of service life that quality brackets afford.
